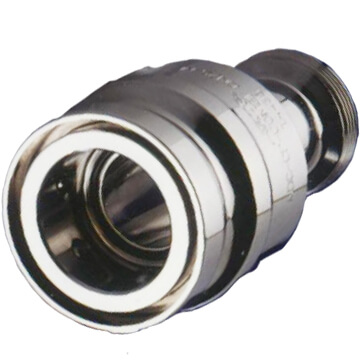

ADC®-CP: Quick-Disconnect for hygienic applications
The ADC®-CP Quick Disconnect Coupling to DIN 2828 permits the connection and disconnection of a hose line in the shortest possible time. Thanks to its gap-free and open bore design, the ADC®-CP is especially suitable for hygienic applications and is therefore ideal for use in the pharmaceutical, cosmetics and food industries.
The ADC®-CP consists of an inline connector and an optional adaptor. The ADC®-CP inline connector can be mounted on the end of a hose. Among other things, the adaptor is suitable for mounting on containers as well as hoses and piping.
To connect the coupling, simply push the two coupling components together.
To disconnect the coupling, pull back the release mechanism on the inline connector. The two components can then be easily separated.
ADC®-CP couplings ensure sterile handling. Options include a sterile screw connection, sterile flange connection or sterile clamp connection. The ADC®-CP can be cleaned easily after use.
In order to prevent unwanted entry of external substances into the system, the internal structure of the ADC®-CP is completely gap-free. This gap-free design also prevents residues from settling.
ADC®-CP couplings have a very high level of compatibility due to their construction in accordance with DIN 2828 standards.
The intelligent connection and disconnection mechanism offers the fastest possible coupling and uncoupling.
